HS240 - Brass PEX Insert Fittings for USA

Pipe fittings for PEX pipes
Features
  • Suitable for plumbing system
  • Thread options: NPT male thread, NPSM female thread
  • Compliant with ANSI/ASME B1.20.1 and F1807 standard
  • Material options: C46500 brass
Size Nominal Dimension and Tolerance
A(mm) B(mm) C(mm)
3/8" Ф8.76 ±0.1 5.85 +0.1 MIN16.0
1/2" Ф11.96 ±0.1 8.89 +0.1 MIN16.0
5/8" Ф14.48 ±0.1 11.46 +0.1 MIN16.0
3/4" Ф16.94 ±0.1 13.47 +0.1 MIN16.0
1" Ф21.74 ±0.1 18.04 +0.1 MIN20.5
1 1/4" Ф26.54 ±0.1 22.1 +0.1 MIN24.0
1 1/2" Ф31.32 ±0.15 25.91 +0.15 MIN29.0
2" Ф40.69 ±0.15 34.68 +0.15 MIN38.0

Structure

HS240 - Brass PEX Insert Fittings for USA
  • Straight Coupling
  • Elbow Fitting
  • Tee Fitting
Straight Coupling
Equal Coupling & Reducing Coupling, HS240-001
  • Equal Coupling & Reducing Coupling, HS240-001
Inquiry
Size
3/8“×3/8“ 1/2“×3/8“ 1 1/2“×1 1/4“
1/2“×1/2“ 3/4“×1/2“ 2“×1“
5/8“×5/8“ 3/4“×5/8“ 2“×1 1/4“
3/4“×3/4“ 1“×3/4“ 2“×1 1/2“
1“×1“ 1 1/4“×3/4“
1 1/4“×1 1/4“ 1 1/4“×1“
1 1/2“×1 1/2“ 1 1/2“×3/4“
2“×2“ 1 1/2“×1“
Threaded Female Adapter, HS240-002
  • Threaded Female Adapter, HS240-002
Inquiry
Size
3/8“×1/2"F 3/4“×3/4"F 1 1/2“×1 1/2"F
1/2“×1/2"F 3/4“×1"F 2“×2"F
1/2“×3/4"F 1“×3/4"F
5/8“×1/2"F 1“×1"F
5/8“×3/4"F 1 1/4“×1"F
3/4“×1/2"F 1 1/4“×1 1/4"F
Threaded Male Adapter, HS240-003
  • Threaded Male Adapter, HS240-003
Inquiry
Size
3/8“×1/2"M 3/4“×3/4"M 1 1/2“×1 1/2"M
1/2“×1/2"M 3/4“×1"M 2“×2"M
1/2“×3/4"M 1“×3/4"M
5/8“×1/2"M 1“×1"M
5/8“×3/4"M 1 1/4“×1"M
3/4“×1/2"M 1 1/4“×1 1/4"M
Sweat Female Adapter, HS240-004
  • Sweat Female Adapter, HS240-004
Inquiry
Size
3/8“×1/2"F 3/4“×3/4"F 1 1/2“×1 1/2"F
1/2“×1/2"F 3/4“×1"F 2“×2"F
1/2“×3/4"F 1“×3/4"F
5/8“×1/2"F 1“×1"F
5/8“×3/4"F 1 1/4“×1"F
3/4“×1/2"F 1 1/4“×1 1/4"F

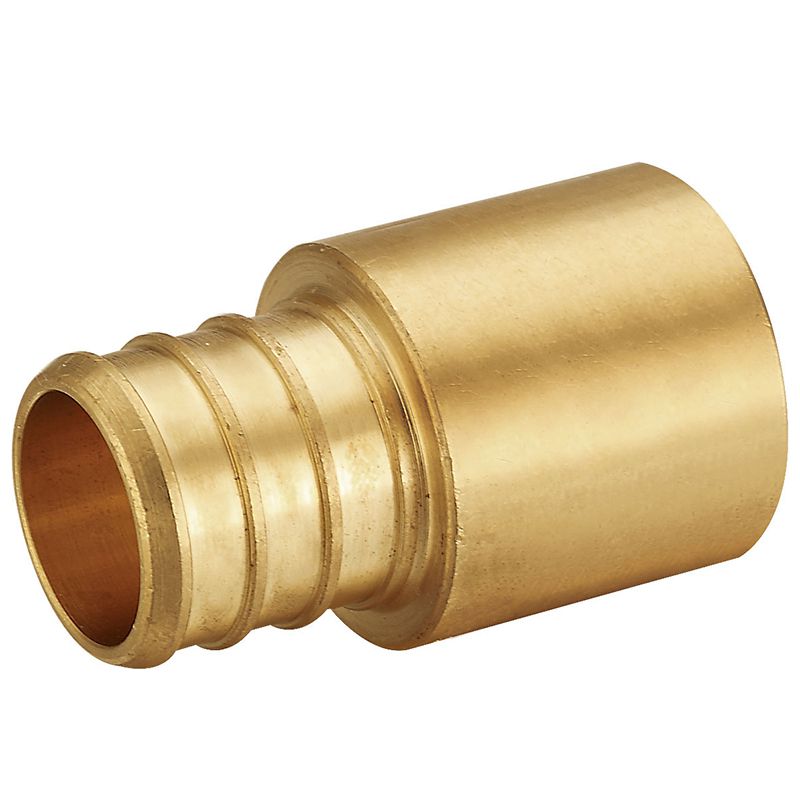

Sweat Male Adapter, HS240-005
  • Sweat Male Adapter, HS240-005
Inquiry
Size
3/8“×1/2"M 3/4“×3/4"M 1 1/2“×1 1/2"M
1/2“×1/2"M 3/4“×1"M 2“×2"M
1/2“×3/4"M 1“×3/4"M
5/8“×1/2"M 1“×1"M
5/8“×3/4"M 1 1/4“×1"M
3/4“×1/2"M 1 1/4“×1 1/4"M
Swivel Adapter with Brass Nut, HS240-013
  • Swivel Adapter with Brass Nut, HS240-013
Inquiry
Size
3/8“×3/8"F
3/8“×1/2"F
1/2“×1/2"F
1/2“×3/4"F
3/4“×3/4"F
3/4“×1"F
1“×1"F
Swivel Adapter with Plastic Nut, HS240-014
  • Swivel Adapter with Plastic Nut, HS240-014
Inquiry
Size
3/8“×3/8"F
3/8“×1/2"F
1/2“×1/2"F
1/2“×3/4"F
3/4“×3/4"F
3/4“×1"F
1“×1"F
Brass Plug, HS240-016
  • Brass Plug, HS240-016
Inquiry
Size
3/8“
1/2“
5/8“
3/4“
1“
1 1/4“
1 1/2“
2“
Polybutylene Adapter with PB Crimp Ring, HS240-017
  • Polybutylene Adapter with PB Crimp Ring, HS240-017
Inquiry
Size
3/8“
1/2“
3/4“
Elbow Fitting
Equal Elbow & Reducing Elbow, HS240-006
  • Equal Elbow & Reducing Elbow, HS240-006
Inquiry
Size
3/8“×3/8“ 1/2“×3/8“
1/2“×1/2“ 3/4“×1/2“
5/8“×5/8“ 3/4“×5/8“
3/4“×3/4“ 1“×3/4“
1“×1“
1 1/4“×1 1/4“
1 1/2“×1 1/2“
2“×2“
Threaded Female Elbow, HS240-007
  • Threaded Female Elbow, HS240-007
Inquiry
Size
3/8“×1/2"F 3/4“×3/4"F 1 1/2“×1 1/2"F
1/2“×1/2"F 3/4“×1"F 2“×2"F
1/2“×3/4"F 1“×3/4"F
5/8“×1/2"F 1“×1"F
5/8“×3/4"F 1 1/4“×1"F
3/4“×1/2"F 1 1/4“×1 1/4"F
Threaded Male Elbow, HS240-008
  • Threaded Male Elbow, HS240-008
Inquiry
Size
3/8“×1/2"M 3/4“×3/4"M 1 1/2“×1 1/2"M
1/2“×1/2"M 3/4“×1"M 2“×2"M
1/2“×3/4"M 1“×3/4"M
5/8“×1/2"M 1“×1"M
5/8“×3/4"M 1 1/4“×1"M
3/4“×1/2"M 1 1/4“×1 1/4"M
Sweat Female Elbow, HS240-009
  • Sweat Female Elbow, HS240-009
Inquiry
Size
3/8“×1/2"F
1/2“×1/2"F
1/2“×3/4"F
5/8“×3/4"F
3/4“×1/2"F
3/4“×3/4"F
1“×1"F
Sweat Male Elbow, HS240-010
  • Sweat Male Elbow, HS240-010
Inquiry
Size
1/2“×1/2"M
1/2“×3/4"M
5/8“×3/4"M
3/4“×3/4"M
1“×1"M
Wallplate Elbow, HS240-011
  • Wallplate Elbow, HS240-011
Inquiry
Size
3/8“×1/2"F
1/2“×3/8"F
1/2“×1/2"F
3/4“×1/2"F
3/4“×3/4"F
Swivel Elbow with Plastic Nut, HS240-015
  • Swivel Elbow with Plastic Nut, HS240-015
Inquiry
Size
3/8“×3/8"F
3/8“×1/2"F
1/2“×1/2"F
1/2“×3/4"F
3/4“×3/4"F
Tee Fitting
Equal Tee & Reducing Tee, HS240-012
  • Equal Tee & Reducing Tee, HS240-012
Inquiry
Size
3/8“×3/8“×3/8“ 1/2“×1/2“×3/8“ 1“×3/4“×1/2“ 1 1/2“×1 1/4“×3/4“ 2“×1 1/2“×1 1/2“
1/2“×1/2“×1/2“ 1/2“×1/2“×3/4“ 1“×1/2“×3/4“ 1 1/2“×1 1/4“×1“ 2“×2“×1/2“
5/8“×5/8“×5/8“ 3/4“×3/4“×3/8“ 1“×1/2“×1“ 1 1/2“×1 1/4“×1 1/4“ 2“×2“×3/4“
3/4“×3/4“×3/4“ 3/4“×1/2“×1/2“ 1 1/4“×1“×3/4“ 1 1/2“×1 1/2“×1/2“ 2“×2“×1“
1“×1“×1“ 3/4“×1/2“×3/4“ 1 1/4“×1“×1“ 1 1/2“×1 1/2“×3/4“ 2“×2“×1 1/4“
1 1/4“×1 1/4“×1 1/4“ 3/4“×3/4“×1/2“ 1 1/4“×1 1/4“×1/2“ 1 1/2“×1 1/2“×1“ 2“×2“×1 1/2“
1 1/2“×1 1/2“×1 1/2“ 3/4“×3/4“×1“ 1 1/4“×1 1/4“×3/4“ 1 1/2“×1 1/2“×1 1/4“
2“×2“×2“ 1“×3/4“×1“ 1 1/4“×1 1/4“×1“ 2“×1 1/4“×1 1/4“
3/8“×3/8“×1/2“ 1“×1“×1/2“ 1 1/2“×3/4“×3/4“ 2“×1 1/2“×3/4“
1/2“×3/8“×3/8“ 1“×1“×3/4“ 1 1/2“×1“×3/4“ 2“×1 1/2“×1“
1/2“×3/8“×1/2“ 1“×3/4“×3/4“ 1 1/2“×1“×1“ 2“×1 1/2“×1 1/4“
