  • HS230 - Brass Compression Fittings

HS230 - Brass Compression Fittings

Pipe fittings for PEX pipes

This series fittings allow for the connection of cross-linked polyethylene pipe (PE-X). On the coupling ends, the union with the polyethylene tube is sealed by O-rings placed on the removable insert that is introduced into the fitting body and into the tube. The assembly is tightened by the nut that compresses the clamp, leaving the tube subject and the connection tight. In the different articles of the family the references with different sizes are identified in inches for the threaded end, and in millimetres for the coupling end in reference to the outer diameter and thickness of the corresponding polyethylene tube. Examples of applications may be plumbing for water supply and distribution, hot water feeding for radiators and underfloor heating.

Features
  • Suitable for plumbing system
  • Size: Ø16 to Ø 25
  • CE approved
  • Adaptable pipe: PEX pipe
  • Fast and simple installation

Structure

HS230 - Brass Compression Fittings
Product Technical Document
Material Options Nut CW617N-4MS / MS58
Lock-ring MS58
Body CW617N-4MS / MS58
Surface treatment options Raw / Nickel-plated
  • Straight Coupler
  • Elbow
  • Tee
  • Straight Compression Manifold
Brass Compression Straight Coupler
Equal Straight Coupler C×C, HS230-001
  • Equal Straight Coupler C×C, HS230-001
  • Equal Straight Coupler C×C, HS230-001
Inquiry
SIZE D L
12×12(×1.1) 12 39.5
12×12(×2.0) 12 39.5
15×15(×2.5) 15 42
16×16(×1.5) 16 43
18×18(×2.5) 18 49
20×20(×1.9) 20 46.5
22×22(×3.0) 22 48
25×25(×2.3) 25 46.5
Female Straight Coupler C×FI, HS230-002
  • Female Straight Coupler C×FI, HS230-002
  • Female Straight Coupler C×FI, HS230-002
Inquiry
SIZE D G L L1
12(×1.1)×3/8″F 12 3/8" 27.5 8.5
12(×1.1)×1/2″F 12 1/2" 30 10.5
12(×2.0)×1/2″F 12 1/2" 30 10.5
15(×2.5)×1/2″F 15 1/2" 32 11.5
16(×1.5)×1/2″F 16 1/2" 31.5 10.5
16(×2.0)×1/2″F 16 1/2" 31.5 10.5
16(×2.2)×1/2″F 16 1/2" 31.5 10.5
16(×1.5)×3/4″F 16 3/4" 33 12
16(×2.0)×3/4″F 16 3/4" 33 12
16(×2.2)×3/4″F 16 3/4" 33 12
18(×2.5)×1/2″F 18 1/2" 35.5 11.5
18(×2.5)×3/4″F 18 3/4" 37.5 13
20(×1.9)×1/2″F 20 1/2" 32.5 10.5
20(×1.9)×3/4″F 20 3/4" 34.5 12
22(×3.0)×3/4″F 22 3/4" 36.5 13
25(×2.3)×3/4″F 25 3/4" 34 12
25(×2.3)×1″F 25 1" 35.5 13.5
View All
Male Straight Coupler C×MI, HS230-003
  • Male Straight Coupler C×MI, HS230-003
  • Male Straight Coupler C×MI, HS230-003
Inquiry
SIZE D G L L1
12(×1.1)×3/8″M 12 3/8" 31.7 9.7
12(×2.0)×3/8″M 12 3/8" 31.7 9.7
12(×1.1)×1/2″M 12 1/2" 33.2 11.2
12(×2.0)×1/2″M 12 1/2" 33.2 11.2
15(×2.5)×1/2″M 15 1/2" 33 9.5
16(×1.5)×3/8″M 16 3/8" 33.7 9.7
16(×1.5)×1/2″M 16 1/2" 35.2 11.2
16(×2.0)×1/2″M 16 1/2" 35.2 11.2
16(×2.2)×1/2″M 16 1/2" 35.2 11.2
16(×1.5)×3/4″M 16 3/4" 37.7 12.7
16(×2.0)×3/4″M 16 3/4" 37.7 12.7
16(×2.2)×3/4″M 16 3/4" 37.7 12.7
18(×2.5)×1/2″M 18 1/2" 36.5 9.5
18(×2.5)×3/4″M 18 3/4" 39 11
20(×1.9)×1/2″M 20 1/2" 36.7 11.2
20(×2.0)×1/2″M 20 1/2" 36.7 11.2
20(×1.9)×3/4″M 20 3/4" 39.2 12.7
20(×2.0)×3/4″M 20 3/4" 39.2 12.7
22(×3.0)×3/4″M 22 3/4" 38 11
25(×2.3)×3/4″M 25 3/4" 39.2 12.7
25(×2.3)×1″M 25 1" 41.5 14.5
View All
Brass Compression Elbow
Equal Elbow C×C, HS230-004
  • Equal Elbow C×C, HS230-004
  • Equal Elbow C×C, HS230-004
Inquiry
SIZE D L H
12×12(×1.1) 12 30 30
15×15(×2.5) 15 32 32
16×16(×1.5) 16 33 33
18×18(×2.5) 18 36 36
20×20(×1.9) 20 37 37
22×22(×3.0) 22 39.5 39.5
25×25(×2.3) 25 41 41
Female Elbow C×FI, HS230-005
  • Female Elbow C×FI, HS230-005
  • Female Elbow C×FI, HS230-005
Inquiry
SIZE D G L H H1
12(×1.1)×1/2″F 12 1/2" 31 25 10.5
12(×2.0)×1/2″F 12 1/2" 31.5 26.5 11.5
15(×2.5)×1/2″F 15 1/2" 33.5 29 11.5
16(×1.5)×1/2″F 16 1/2" 33 27 10.5
20(×1.9)×1/2″F 20 1/2" 35 30 10.5
20(×1.9)×3/4″F 20 3/4" 38 31.5 12
22(×3.0)×3/4″F 22 3/4" 40.5 31.5 13
25(×2.3)×3/4″F 25 3/4" 37.5 33 12
25(×2.3)×1″F 25 1" 41 37 13.5
Wall Plate Elbow C×FI, HS230-006
  • Wall Plate Elbow C×FI, HS230-006
  • Wall Plate Elbow C×FI, HS230-006
Inquiry
SIZE D G L H H1 H2
12(×1.1)×1/2″F 12 1/2" 35 29 16 10.5
15(×2.5)×1/2″F 15 1/2" 33.5 36 21 11.5
16(×1.5)×1/2″F 16 1/2" 35 32.5 17.5 10.5
20(×1.9)×1/2″F 20 1/2" 37 35 18 10.5
Male Elbow C×MI, HS230-010
  • Male Elbow C×MI, HS230-010
  • Male Elbow C×MI, HS230-010
Inquiry
SIZE D G L H H1
12(×1.1)×1/2″M 12 1/2" 30 24 10
16(×1.5)×1/2″M 16 1/2" 32 26 10
20(×1.9)×1/2″M 20 1/2" 34 28 10
20(×1.9)×3/4″M 20 3/4" 37.5 31 11.5
22(×3.0)×3/4″M 22 3/4" 39 30.5 12
25(×2.3)×3/4″M 25 3/4" 38 35 11.5
25(×2.3)×1″M 25 1" 41 36 12.2
Elbow with Swivel Nut, HS230-012
  • Elbow with Swivel Nut, HS230-012
  • Elbow with Swivel Nut, HS230-012
Inquiry
SIZE D G L H
12(×1.1)×1/2″F 12 1/2" 30 33.5
16(×1.5)×1/2″F 16 1/2" 33 33.5
16(×1.5)×3/4″F 16 3/4" 36 36
20(×1.9)×3/4″F 20 3/4" 38 36.5
Wall Plate Elbow 105°, HS230-013
  • Wall Plate Elbow 105°, HS230-013
  • Wall Plate Elbow 105°, HS230-013
Inquiry
SIZE D G L H H1
12(×1.1)×1/2″F 12 1/2" 32 20 10.5
12(×2.0)×1/2″F 12 1/2" 32 20 10.5
16(×1.5)×1/2″F 16 1/2" 32 20 10.5
16(×2.0)×1/2″F 16 1/2" 32 20 10.5
16(×2.2)×1/2″F 16 1/2" 32 20 10.5
20(×1.9)×1/2″F 20 1/2" 35 20 10.5
20(×2.0)×1/2″F 20 1/2" 35 20 10.5
Brass Compression Tee
Equal Tee C×C×C, HS230-007
  • Equal Tee C×C×C, HS230-007
  • Equal Tee C×C×C, HS230-007
Inquiry
SIZE D L H
12×12×12 (×1.1) 12 60 30
15×15×15 (×2.5) 15 64 32
16×16×16 (×1.5) 16 66 33
18×18×18 (×2.5) 18 72 36
20×20×20 (×1.9) 20 74 37
22×22×22 (×3.0) 22 79 39.5
25×25×25 (×2.3) 25 82 41

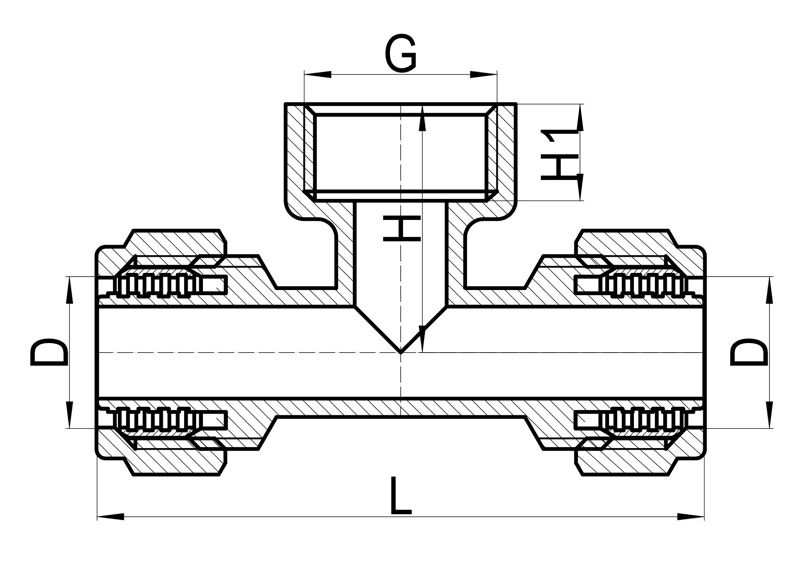

Female Tee C×C×FI, HS230-008
  • Female Tee C×C×FI, HS230-008
  • Female Tee C×C×FI, HS230-008
Inquiry
SIZE D G L H H1
12×12(×1.1)×1/2″F 12 1/2" 62 25 10.5
16×16(×1.5)×1/2″F 16 1/2" 66 27 10.5
20×20(×1.9)×1/2″F 20 1/2" 70 30 10.5
20×20(×1.9)×3/4″F 20 3/4" 76 31.5 12
22×22(×3.0)×3/4″F 22 3/4" 79 35.5 14
25×25(×2.3)×3/4″F 25 3/4" 80 35 12
25×25(×2.3)×1″F 25 1" 82 37 13.5
Male Tee C×C×MI, HS230-011
  • Male Tee C×C×MI, HS230-011
  • Male Tee C×C×MI, HS230-011
Inquiry
SIZE D G L H H1
12×12(×1.1)×1/2″M 12 1/2" 60 24 10
16×16(×1.5)×1/2″M 16 1/2" 64 26 10
20×20(×1.9)×1/2″M 20 1/2" 68 28 10
20×20(×1.9)×3/4″M 20 3/4" 75 31 11.5
25×25(×2.3)×3/4″M 25 3/4" 76 35 11.5
25×25(×2.3)×1″M 25 1" 82 36 12.2
Manifold and Euro Connector
Straight Compression Manifold, HS230-014
  • Straight Compression Manifold, HS230-014
  • Straight Compression Manifold, HS230-014
Inquiry
SIZE D G G1 G2 L L1 L2 L3 N H
14×3/4″×2 15 3/4" 3/4" 1/2" 89 14 13 35 2 30
14×3/4″×3 15 3/4" 3/4" 1/2" 124 14 13 35 3 30
14×3/4″×4 15 3/4" 3/4" 1/2" 159 14 13 35 4 30

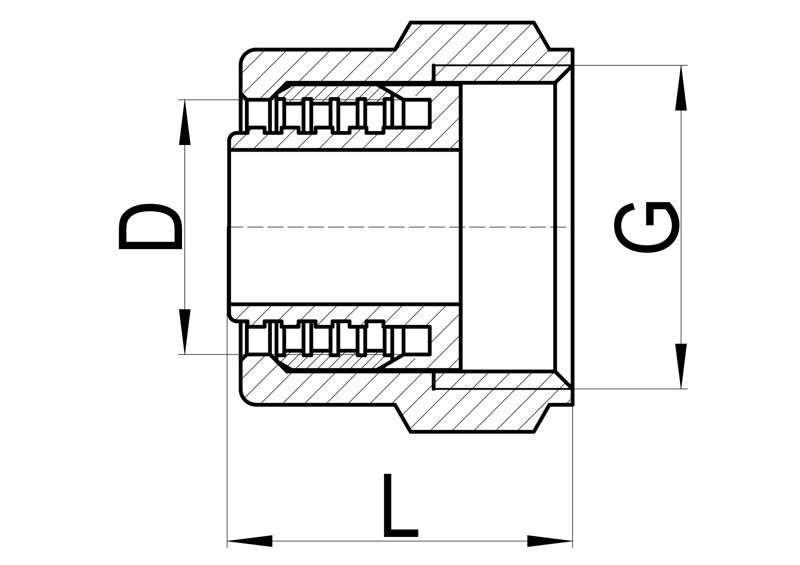

Euro Connector, HS230-015
  • Euro Connector, HS230-015
  • Euro Connector, HS230-015
Inquiry
SIZE D G L
12(×1.1)×3/8″F 12 3/8" 22
12(×1.1)×1/2″F 12 1/2" 22
16(×1.5)×1/2″F 16 1/2" 22.4
16(×1.5)×3/4″F 16 3/4" 22.5
20(×1.9)×3/4″F 20 3/4" 24.7
Euro Connector, HS230-016
  • Compression Manifold Adapter, HS230-016
  • Compression Manifold Adapter, HS230-016
Inquiry
SIZE D G
12(×2.0)×1/2" 12 1/2"
16(×2.0)×1/2" 16 1/2"
16(×2.2)×1/2" 16 1/2"
