HS140 - Light Duty Brass Compression Fittings

Pipe fittings for plastic tubing

Honson HS140 brass compression fittings female threading for PE pipes are specifically designed for use on water distribution. Compared with HS130 series fittings, this range is more competitive in price while with the same function as HS130 fittings.

Item Description Materials
1 Body HPb57-3
2 O ring NBR
3 Washer ring HPb57-3
4 Compression (C-Ring) HPb57-3
5 Nut HPb57-3

Structure

HS140 - Light Duty Brass Compression Fittings
Product Technical Document
Features
  • Suitable for applications: plumbing system and heating installations
  • Size: 20mm - 63mm
  • ACS Certificate
  • Adaptable Pipe: LDPE, MDPE, HDPE
  • Surface treatment options: raw
  • Working temperature: -10°C to + 80°C
  • Max Pressure PN: 16 bar (PN-16)
  • Fastening threads: ISO228/1
  • Straight Coupler
  • Elbow
  • Tee
Light Duty Brass Compression Straight Coupler

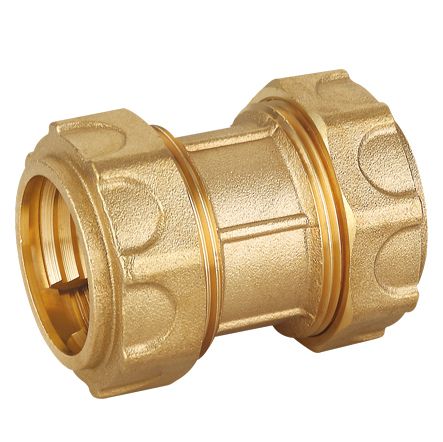

Equal Straight Coupler C×C, HS140-001
  • Equal Straight Coupler C×C, HS140-001
  • Equal Straight Coupler C×C, HS140-001
Inquiry
SIZE D L
20×20 20.7 28
25×25 25.8 30
32×32 33 38.5
40×40 41.5 46.5
50×50 51 58
63×63 64 68
Female Straight Coupler C×FI, HS140-002
  • Female Straight Coupler C×FI, HS140-002
  • Female Straight Coupler C×FI, HS140-002
Inquiry
SIZE D G L L1
20×1/2''F 20.7 1/2'' 26 13
25×3/4''F 25.8 3/4'' 29 14
32×1''F 33 1'' 35 15
40×1 1/4''F 41.5 1 1/4'' 40 16
50×1 1/2''F 51 1 1/2'' 46 17
63×2''F 64 2'' 55.5 20

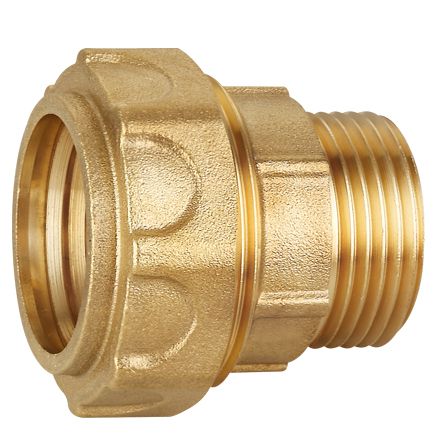

Male Straight Coupler C×MI, HS140-003
  • Male Straight Coupler C×MI, HS140-003
  • Male Straight Coupler C×MI, HS140-003
Inquiry
SIZE D G L L1
20×1/2''M 20.7 1/2'' 26 11
25×3/4''M 25.8 3/4'' 28 12
32×1''M 33 1'' 34.5 14
40×1 1/4''M 41.5 1 1/4'' 41 16
50×1 1/2''M 51 1 1/2'' 48 17
63×2''M 64 2'' 55.5 18.5
Light Duty Brass Compression Elbow
Equal Elbow C×C, HS140-004
  • Equal Elbow C×C, HS140-004
  • Equal Elbow C×C, HS140-004
Inquiry
SIZE D L H
20×20 20.7 25 25
25×25 25.8 30 30
32×32 33 38 38
40×40 41.5 45 45
50×50 51 54.5 54.5
63×63 64 67 67
Female Elbow C×FI, HS140-005
  • Female Elbow C×FI, HS140-005
  • Female Elbow C×FI, HS140-005
Inquiry
SIZE D G L H H1
20×1/2''F 20.7 1/2'' 24 22.5 13
25×3/4''F 25.8 3/4'' 29 26 14
32×1''F 33 1'' 35 33.5 15
40×1 1/4''F 41.5 1 1/4'' 43 38.5 16
50×1 1/2''F 51 1 1/2'' 50 44.5 17
63×2''F 64 2'' 62 55 20
Male Elbow C×MI, HS140-006
  • Male Elbow C×MI, HS140-006
  • Male Elbow C×MI, HS140-006
Inquiry
SIZE D G L H H1
20×1/2''M 20.7 1/2'' 23.5 25.5 11
25×3/4''M 25.8 3/4'' 27 30 12
32×1''M 33 1'' 34 36 14
40×1 1/4''M 41.5 1 1/4'' 42 42 16
50×1 1/2''M 51 1 1/2'' 48 48.5 17
63×2''M 64 2'' 61 57.5 18.5
Wall Plate Elbow C×FI, HS140-009
  • Wall Plate Elbow C×FI, HS140-009
  • Wall Plate Elbow C×FI, HS140-009
Inquiry
SIZE D G L H H1 H2
20×1/2''F 20.7 1/2'' 24 41 22.5 13
25×3/4''F 25.8 3/4'' 29 48 26 14
32×1''F 33 1'' 35 61.5 33.5 15
Light Duty Brass Compression Tee
Equal Tee C×C×C, HS140-007
  • Equal Tee C×C×C, HS140-007
  • Equal Tee C×C×C, HS140-007
Inquiry
SIZE D L H
20×20×20 20.7 50 25
25×25×25 25.8 56 30.5
32×32×32 33 70 38.5
40×40×40 41.5 86 46
50×50×50 51 100 56
63×63×63 64 124 69
Female Tee C×C×FI, HS140-008
  • Female Tee C×C×FI, HS140-008
  • Female Tee C×C×FI, HS140-008
Inquiry
SIZE D G L H H1
20×1/2''F 20.7 1/2'' 48 22.5 13
25×3/4''F 25.8 3/4'' 58 26 14
32×1''F 33 1'' 70 33.5 15
40×1 1/4''F 41.5 1 1/4'' 86 38.5 16
50×1 1/2''F 51 1 1/2'' 100 44.5 17
63×2''F 64 2'' 124 55 20
