HS310 Brass Flare Fitting

Features
  • Both the CW602N and CW511L materials are optional.
  • Approved for WaterMark Certification.
  • Comply with AS 3688:2016 Standard.
Australian Fittings Catalogue

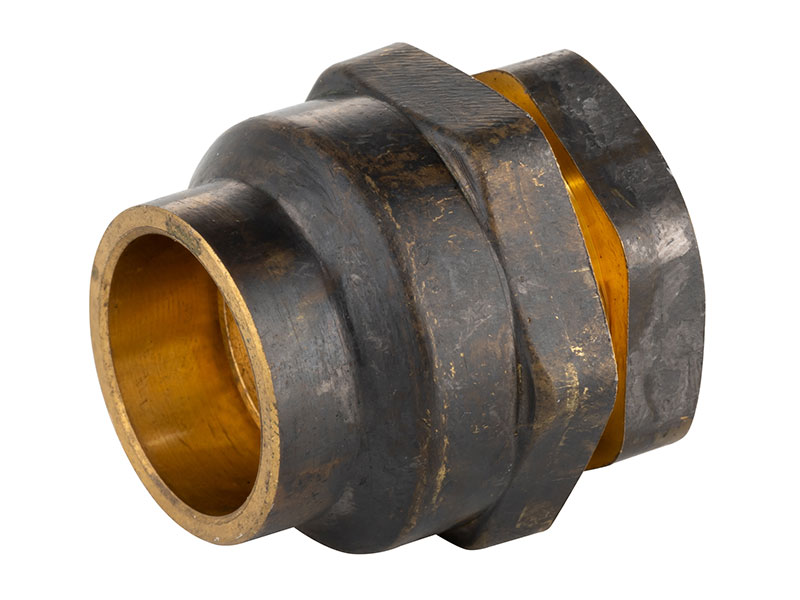

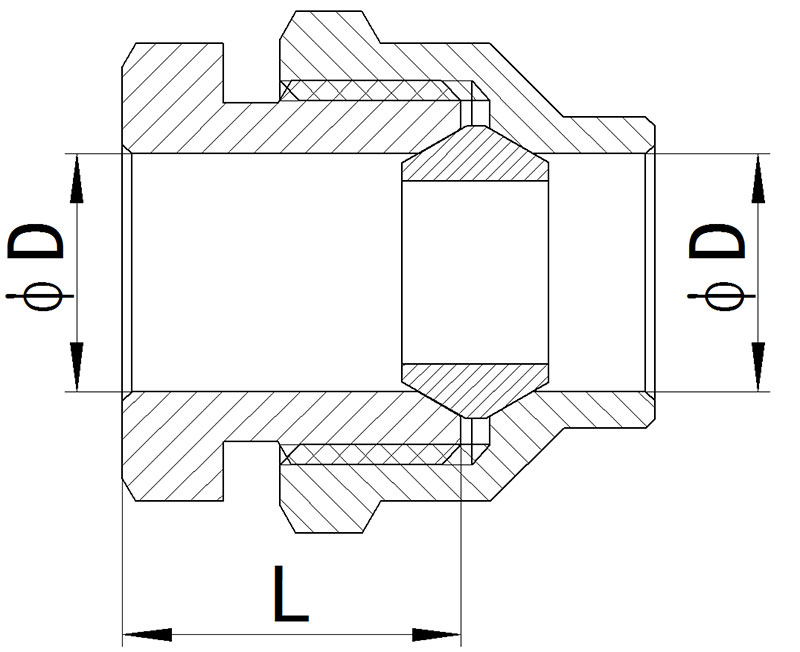

HS310-001 Comp Union Flared
  • HS310-001 Comp Union Flared
  • HS310-001 Comp Union Flared
Inquiry
SIZE D L
15C×15C 13 18.5
20C×20C 19.2 19.5
25C×25C 25.5 23
32C×32C 31.9 27.5
40C×40C 38.3 31
50C×50C 51 31

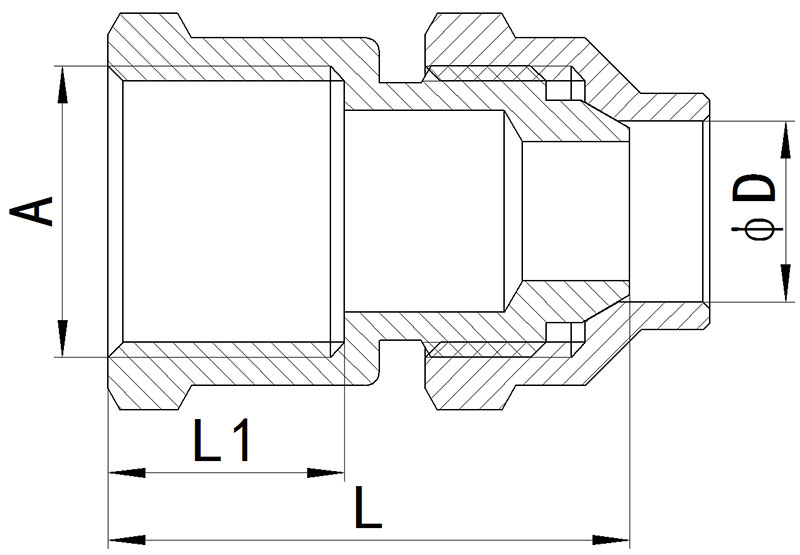

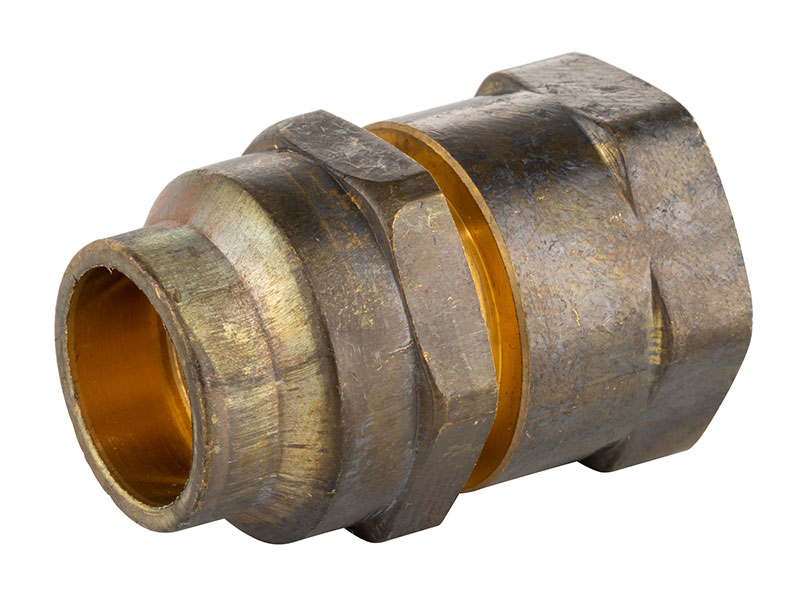

HS310-002 Comp Union Flared Female
  • HS310-002 Comp Union Flared Female
  • HS310-002 Comp Union Flared Female
Inquiry
SIZE D A L L1
15C×15FI 13 Rp1/2 37.5 17
15C×20FI 13 Rp3/4 39.5 18.5
20C×20FI 19.2 Rp3/4 39.5 18.5
25C×25FI 25.5 Rp1 46 21
32C×32FI 31.9 Rp1 1/4 52 24
40C×40FI 38.3 Rp1 1/2 55 24
50C×50FI 51 Rp2 60.5 28

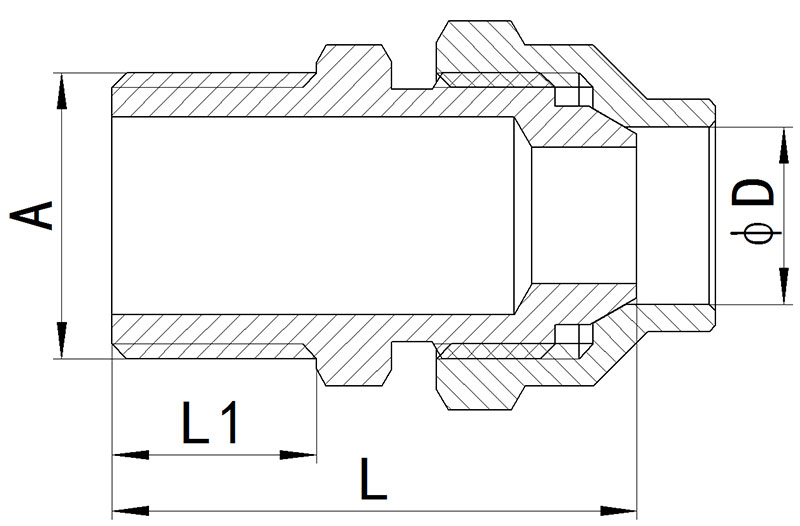

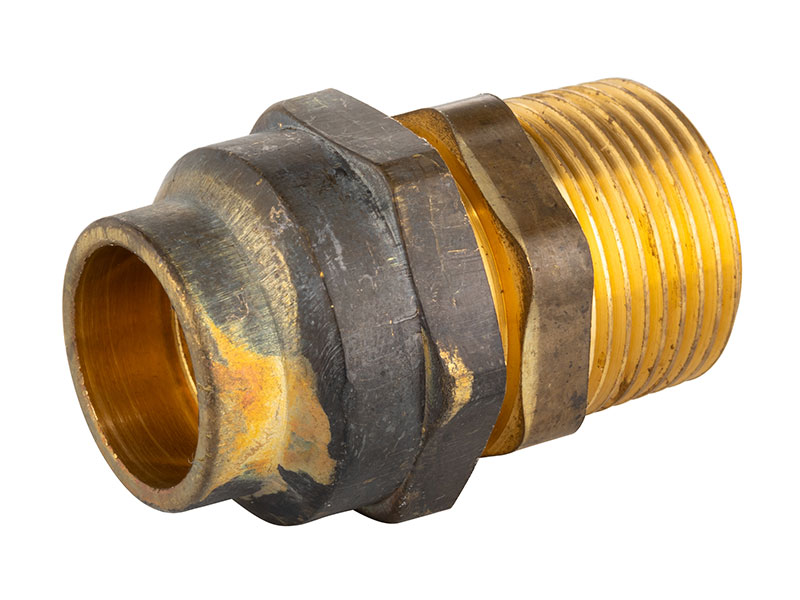

HS310-003 Comp Union Flared Male
  • HS310-003 Comp Union Flared Male
  • HS310-003 Comp Union Flared Male
Inquiry
SIZE D A L L1
15C×6MI 13 R1/2 34.5 11
15C×15MI 13 R3/4 38.5 15
20C×20MI 19.2 R3/4 41 16.5
25C×25MI 25.5 R1 47.5 19
32C×32MI 31.9 R1 1/4 55 21.5
40C×40MI 38.3 R1 1/2 58 21.5
50C×50MI 51 R2 64.5 26

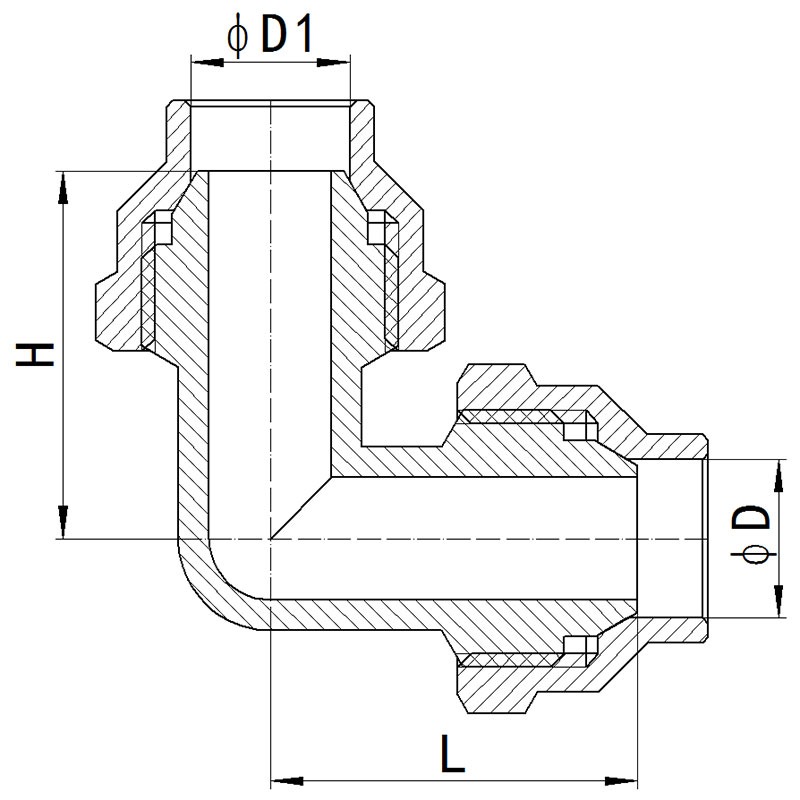

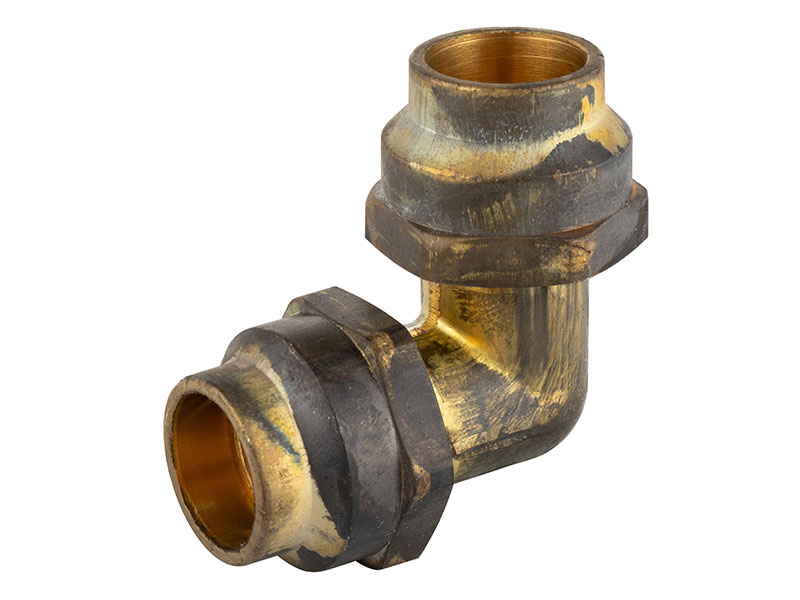

HS310-004 Comp Elbow Flared
  • HS310-004 Comp Elbow Flared
  • HS310-004 Comp Elbow Flared
Inquiry
SIZE D D1 L H
15C×15C 13 30 30 30
20C×15C 19.2 13 30.5 33
20C×20C 19.2 34.5 34.5 34.5
25C×25C 25.5 43 43 43
32C×32C 31.9 50.5 50.5 50.5
40C×40C 38.3 56.5 56.5 56.5
50C×50C 51 66 66 66

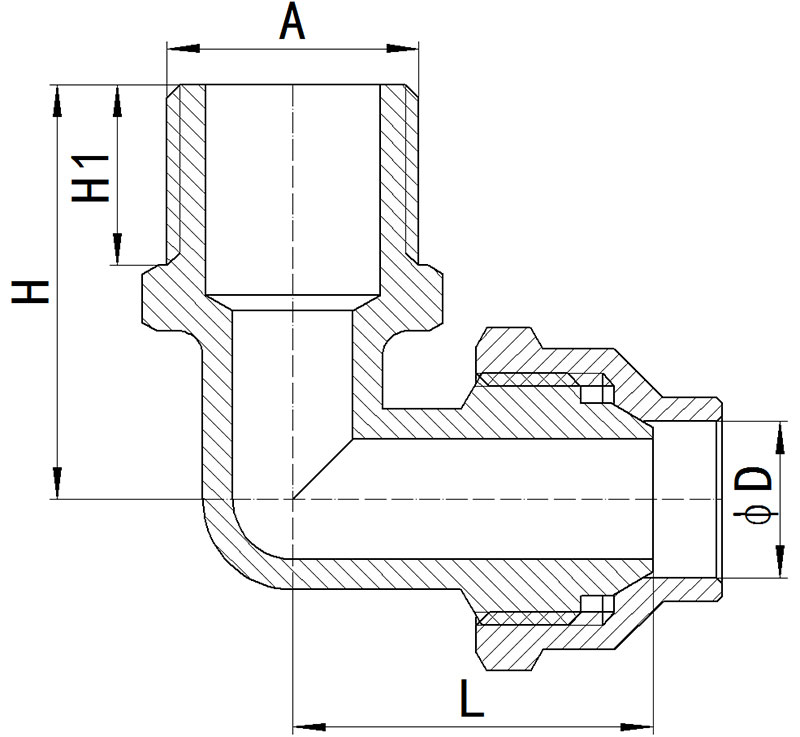

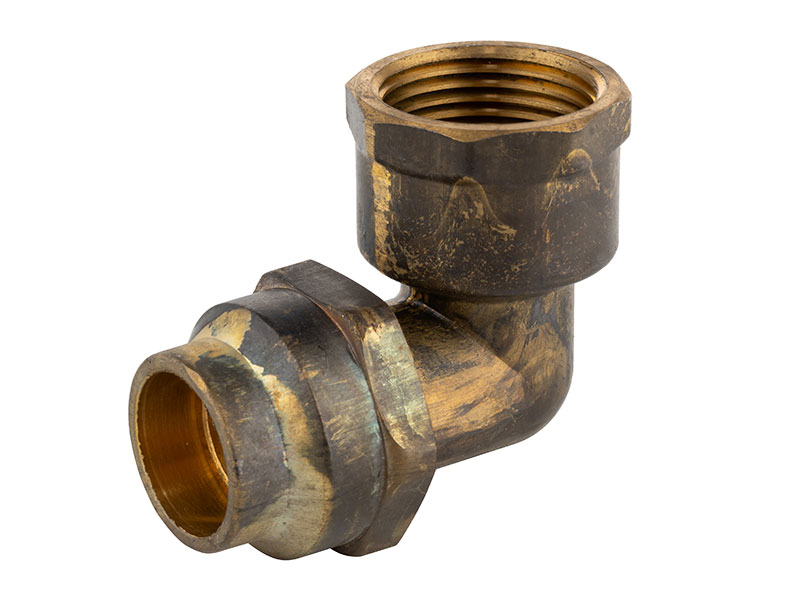

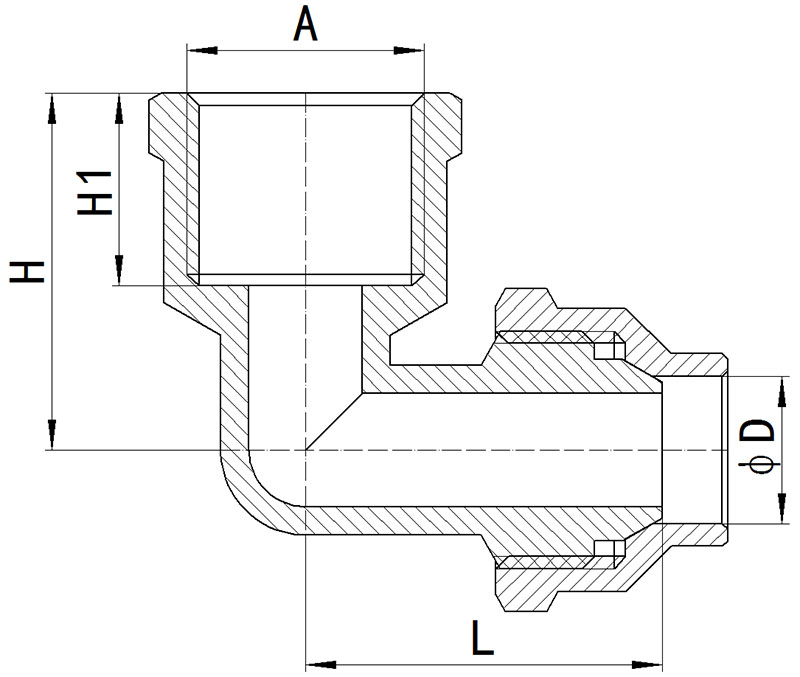

HS310-005 Comp Elbow Flared Female
  • HS310-005 Comp Elbow Flared Female
  • HS310-005 Comp Elbow Flared Female
Inquiry
SIZE D L A H H1
15C×15FI 13 31.5 Rp1/2 31.5 17
20C×20FI 19.2 34.5 Rp3/4 35 18.5
25C×25FI 25.5 43 Rp1 42.5 21
32C×32FI 31.9 50.5 Rp1 1/4 50.5 24
40C×40FI 38.3 56.5 Rp1 1/2 54.5 24
50C×50FI 51 66 Rp2 65 28

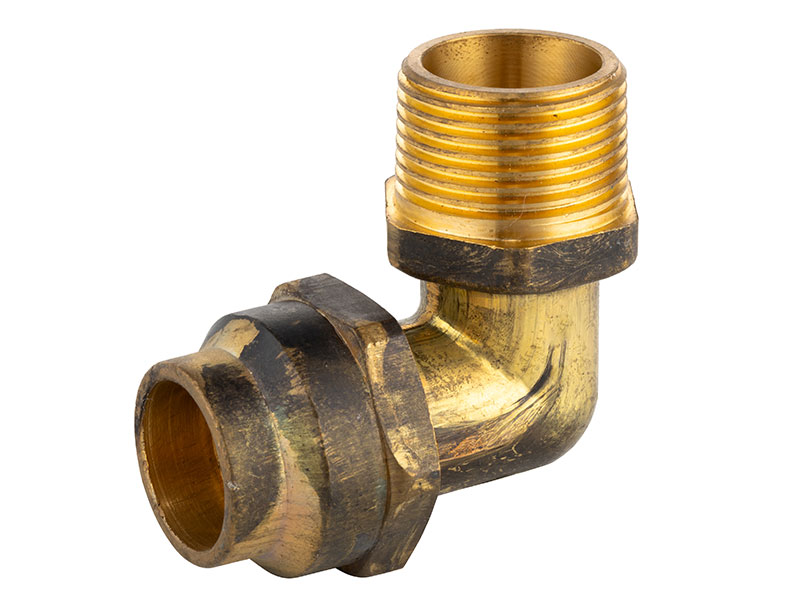

HS310-006 Comp Elbow Flared Male
  • HS310-006 Comp Elbow Flared Male
  • HS310-006 Comp Elbow Flared Male
Inquiry
SIZE D L A H H1
15C×15MI 13 30 R1/2 34.5 15
15C×20MI 13 33 R3/4 37 16.5
20C×20MI 19.2 34.5 R3/4 39.5 16.5
25C×25MI 25.5 42 R1 46 19
32C×32MI 31.9 50.5 R1 1/4 55.5 21.5
40C×40MI 38.3 54.5 R1 1/2 59.5 21.5
50C×50MI 51 64 R2 71 26

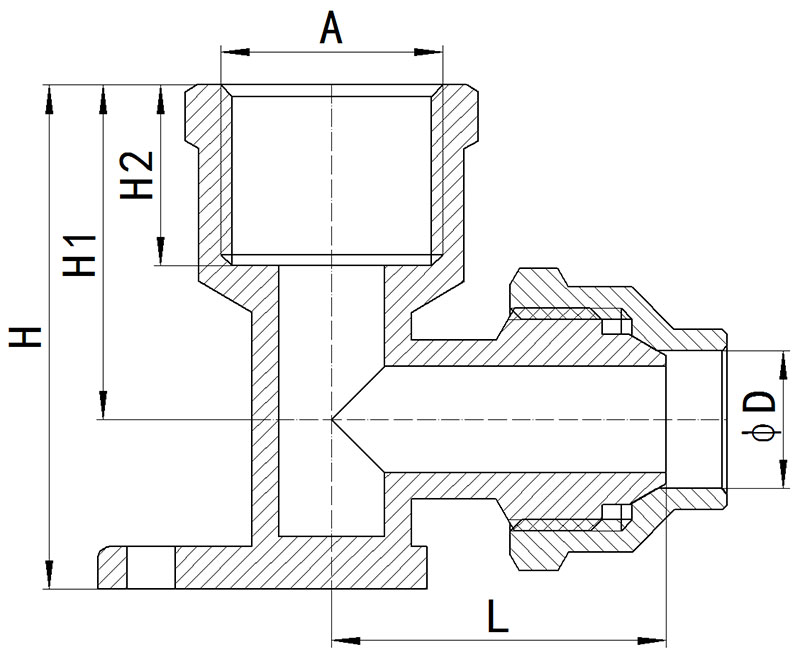

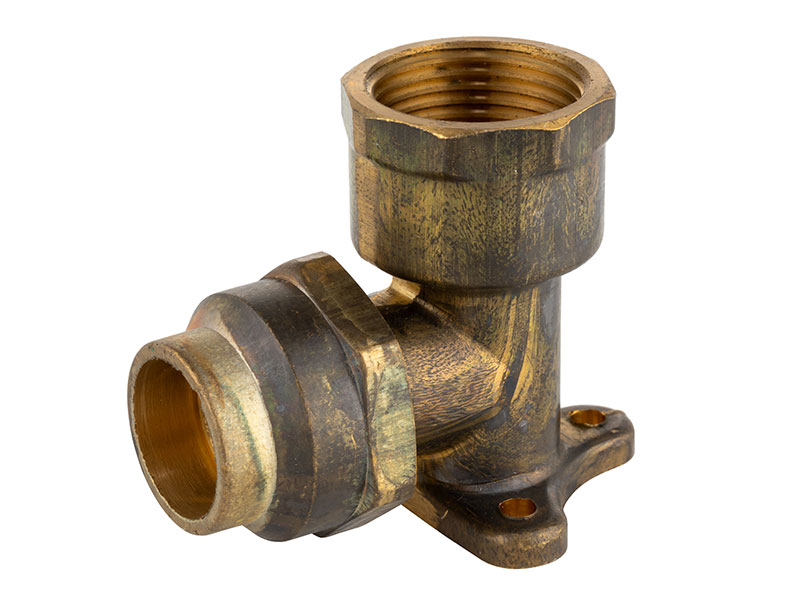

HS310-007 Comp Wallplate Elbow Flared Female
  • HS310-007 Comp Wallplate Elbow Flared Female
  • HS310-007 Comp Wallplate Elbow Flared Female
Inquiry
SIZE D L A H H1 H2
15C×15FI 13 31.5 Rp1/2 47.5 31.5 17
20C×15FI 19.2 32 Rp1/2 52.5 33.5 17
20C×20FI 19.2 34.5 Rp3/4 54 35 18.5

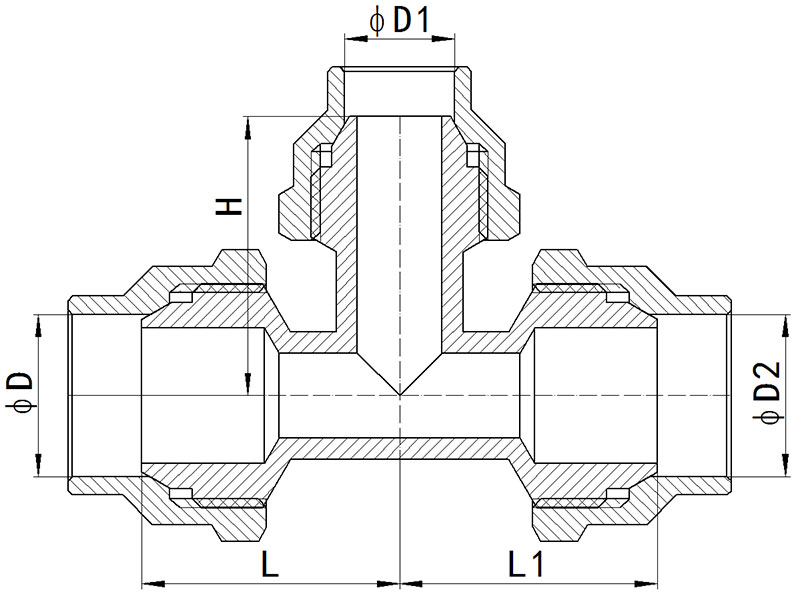

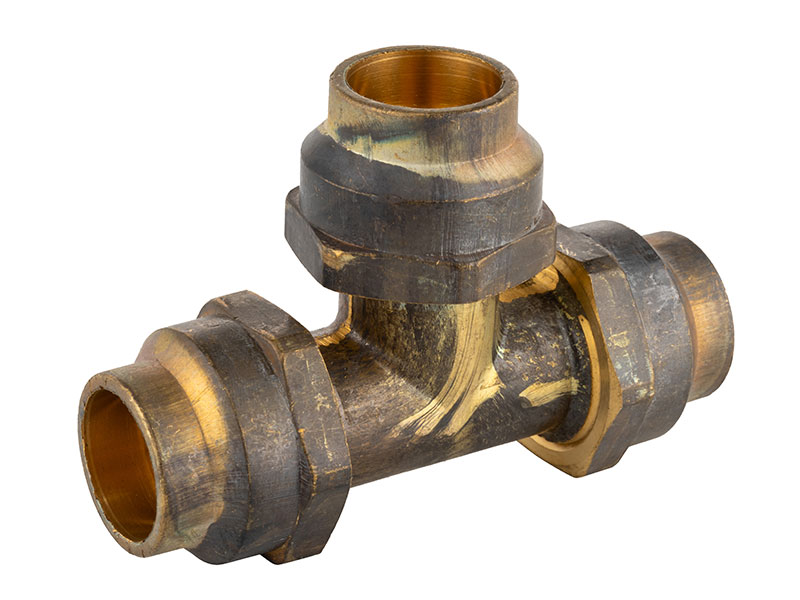

HS310-008 Comp Tee Flared
  • HS310-008 Comp Tee Flared
  • HS310-008 Comp Tee Flared
Inquiry
SIZE D D1 D2 L L1 H
15C×15C×15C 13 13 13 30 30 30
20C×20C×20C 19.2 19.2 19.2 34.5 34.5 34.5
25C×25C×25C 25.5 25.5 25.5 43 43 43
32C×32C×32C 31.9 31.9 31.9 50.5 50.5 50.5
40C×40C×40C 38.3 38.3 38.3 56.5 56.5 56.5
50C×50C×50C 51 51 51 66 66 66
20C×20C×15C 19.2 19.2 13 34.5 33 34.5
20C×15C×15C 19.2 13 13 30.5 30 33
20C×15C×20C 19.2 13 19.2 30.5 30.5 33
